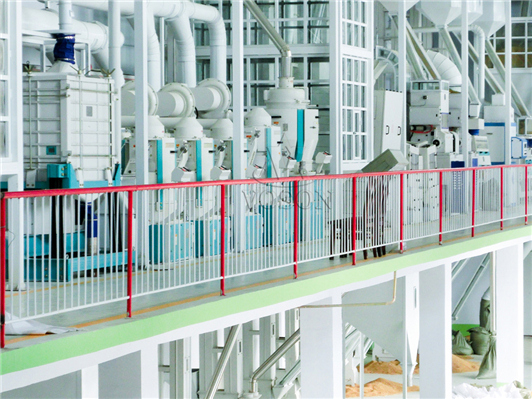

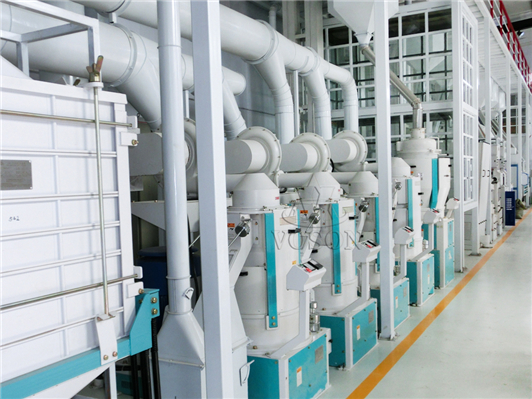

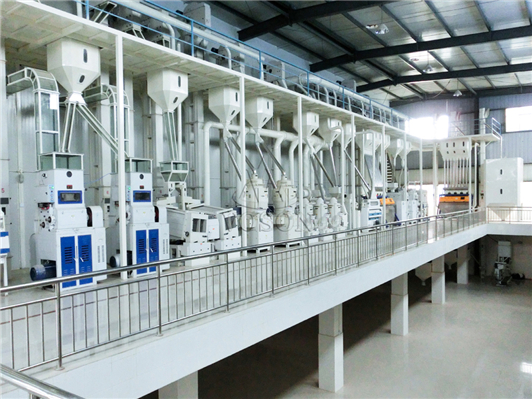

This 100T/D Rice Mill Plant is a large capacity rice mill processing project which can get 4-5ton final rice from paddy rice. It contains a full set of rice processing machines like the paddy rice cleaner machine, rice de-stoner machine, rice huller machine, paddy rice separator machine, rice mill machine, rice polisher machine, rice color sorter machine, rice packing machine, and rice elevators.
100ton Technical parameter:
| Model | VMTCP-100 |
|---|---|
| Capacity | 100ton/day 24hours |
| Power | 200-500kw |
100T/D Complete Rice Mill Plant Working Process
The 100T/D complete rice mill project can process paddy into national standard rice just in one process at the following flow chart:
Raw material feeding → Vibrated cleaner & Destoner → Rice Husker→Paddy Rice Separator → Rice Mill →Rice Polisher → Rice Grader→ Rice Color Sorter → Packing
Then the rice can be on market for sale.
100T/D Complete Rice Mill Plant Product features:
1. This machine integrates multiple functions such as stone removal, vibration, impurity removal, hulling, rice milling, and sieving. Fully automatic operations from paddy to white rice.
2. The new fully automatic rice machine with gravity paddy separator, is easy to operate and convenient
3. Neat and beautiful structure, low energy consumption, convenient operation and maintenance, and easy disassembly and assembly of all equipment
4. The rice milling part of the combined rice mill plant adopts negative pressure rice milling technology, which has low rice temperature, less chaff, and less broken rate
5. Designed according to advanced technological requirements, the complete set of rice mills are arranged in a "one" shape, and the main operations are concentrated on one side, which is convenient for operation
6、Length grader and thickness grader machine can be chose for using.
A 100 ton rice mill production line should state whether the capacity means paddy input per day, finished rice per day, or another basis. This definition affects every machine in the line, including cleaning, husking, separation, whitening, polishing, grading, sorting, packing, storage and utilities.
| Line section | Typical equipment | Quote information needed |
|---|---|---|
| Cleaning | Pre-cleaner, vibrating screen, destoner, magnet, elevators and dust control. | Paddy impurity, intake method and cleaning standard. |
| Husking and separation | Rubber roller huller, husk aspiration, paddy separator and return system. | Paddy variety, moisture, hulling rate and return flow. |
| Milling and polishing | Whiteners, polishers, bran system, air control and grain-temperature management. | Whiteness, gloss, yield and broken-rice target. |
| Grading and sorting | Length grader, thickness grader, color sorter, reject handling and blending. | Finished-rice grade, defect tolerance and market standard. |
| Packing and storage | Bins, weighing, bagging, sewing, conveyors and optional automation. | Bag size, packing speed, storage time and labor plan. |
| Project services | Layout, foundation guide, motor list, installation, training and acceptance test. | Building size, voltage, destination, Incoterm and service boundary. |
Compare the complete process rather than one machine price. The quotation should include model list, capacity basis, motor power, electrical scope, platforms, ducts, spare parts, installation boundary, trial-run method and warranty. For cost structure, review 100 ton rice mill project cost and the broader rice mill project cost checklist. For equipment details, compare rice mill vibrating screen, paddy separator and rice thickness grader.
To request a production-line proposal, send paddy input basis, required output, quality target, packing method, site country, voltage, building size and installation expectations through Contact.
The quotation must state the basis clearly. Paddy input and finished-rice output are not the same.
Capacity basis, automation, color sorting, packing, storage, electrical scope, dust collection, freight and installation support can all change price.
Yes. Layout, foundation guidance, motor list and installation boundary are essential before building preparation.
Record input, output, yield, broken rice, quality, motor load, downtime, packing speed and paddy condition during the trial.
